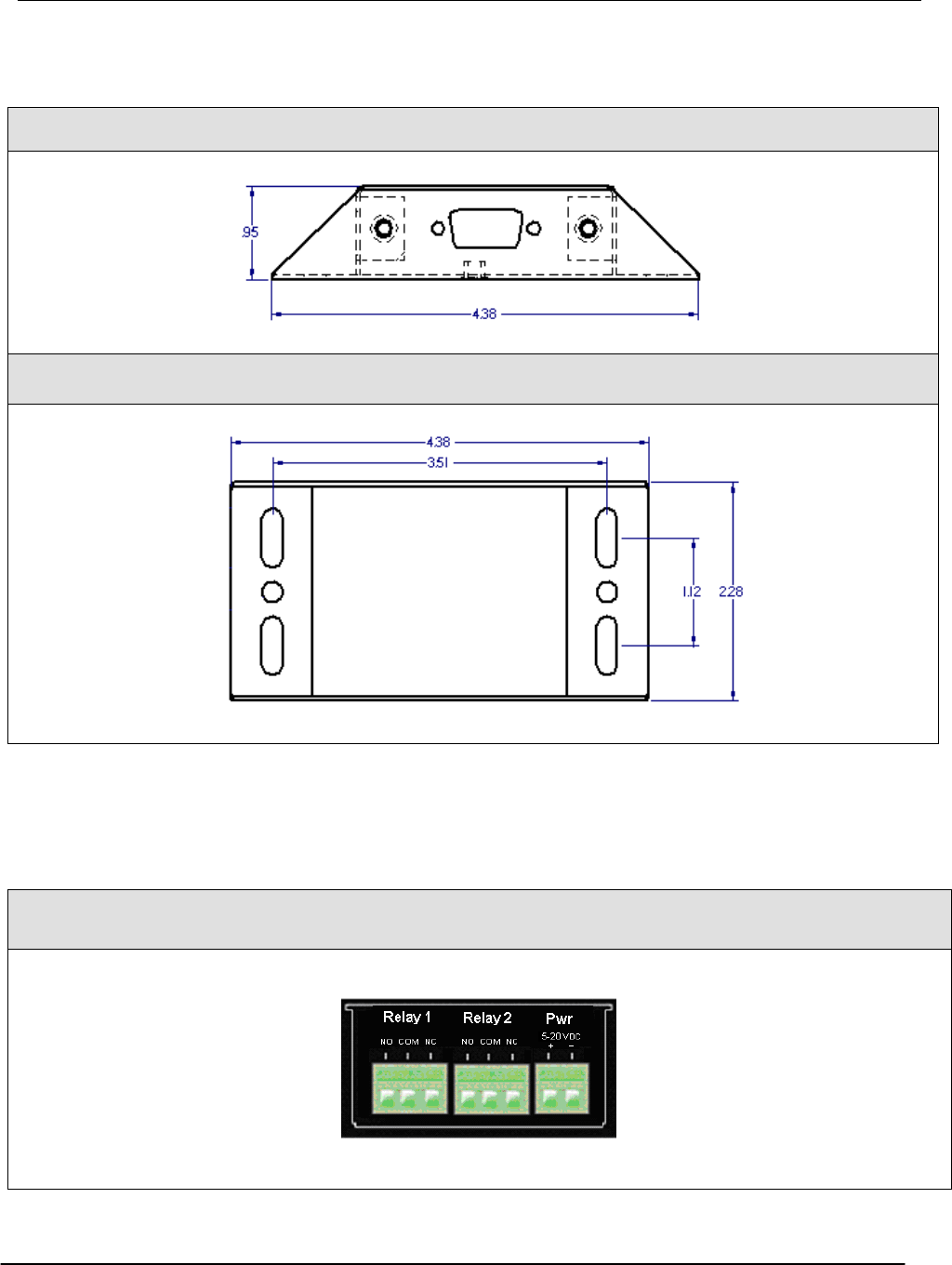

Hardware Dimensions

The PRC1000 is approximately 4.5” x 2.35” x 1” in size. Exact dimensions are as follows:

Serial Side View

Top View

Interfaces

The PRC1000 provides the following hardware interfaces:

 (2) Relay Outputs - Rated at 1 Amp at 120 VAC and 4 Amps at 30VDC

 (1) Power interface - 5-20VDC

Terminal Block View

1 2 3 4 5 6 7 8 9 10 ... 17 18
